10 reactors in 1 device for many applications
XELSIUS is an innovative combination of a compact multi-reactor, an intuitive control software and versatile add-ons & accessories
Employ the xelsius workstation to work on
(In)organic chemistry – High-pressure chemistry – Photochemisty – Electrochemistry
Biochemistry – Molecular biology – Chemical biology
For (in)organic chemistry there is a wide range of glassware, reaction vessels and multi-block vessel adapters to perform manifold syntheses and screenings.
Add-ons and accessories like a Dosing Pump Unit, Overhead Stirrer or a Reflux Condensor Module extend functionailties.
For high-pressure chemistry there is a pressure reactor up to 15 bar (ideal for hydrogenation) complemented by a autoclave up to 200 bar.
The LumiSynth Photoreactor allows photochemisty at defined reaction temperatures with direct sample irradiation.
In addition there is a pressurized version of the LumiSynth Photoreactor up to 15 bar.

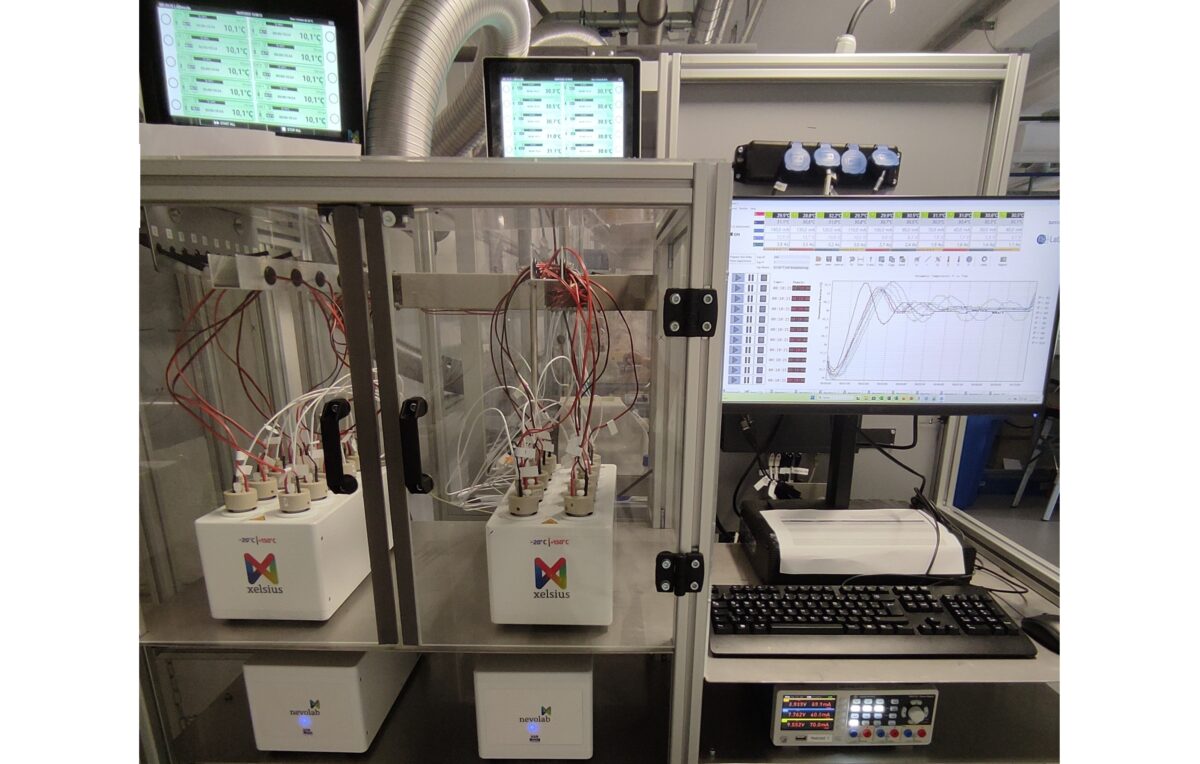

ElectroSynth is a electrochemistry solution for the xelsius LabWorkstation to investigate electrosynthesis, electrolysis, electrorefining, corrosion & materials stability testing.
xelsius in brief
The xelsius LabWorkstation
provides the functional interplay of a
- compact multi-reactor,
- operated with an intuitive control software on a touch UI,
- complemented by varying reactor vessel add-ons & accessories
is predestined for systematic experimentation, as it offers
- 10 simultaneous experiments
- at uniform & precisely controlled reaction conditions
- with reproducibility & high-throughput at the same time
is highly versatile, enabeling investigations on
- (In)organic chemistry
- High-pressure chemistry
- Photochemistry
- Electrochemistry
- Biochemistry/Molecular Biology/Chemical biology
xelsius LabWorkstation
KEY FEATURES of the MULTI-REACTOR
- 10 reactor positions – independently operating & controlled
- Batch dimension 5.0 – 20.0 mL
- Temperature range from -20 °C to 150 °C
Precise reaction temperature control via PI controller
Rapid heating and cooling with peltier technology - Magnetic stirring from 400 to 1500 rpm
Mechanical stirring from 20 to 1000 rpm - Compact design – Footprint of 36 x 33 cm
xelsius Applications
- Chemical synthesis
- Reaction development & parallel synthesis
- Automated heating and cooling experiments
- Route scouting
- Stability and material testing
- Degradation and stability studies
- Extraction and sample preparation
- Solid state/RIG testing in OLED and battery development
- Drug discovery and medicinal chemistry
- Reaction and process development
- Solubility and crystallization studies in API production
- Solvent screening
Touchpanel monitor
1280×600 Pixel
10.1’’
10 x reactor slots, independently operating and controlled
10 x PID temperature control +/- 0.1°C
10 x magnetic stirrers 400-1500 rpm
10 x temperature profiles from -20°C to 150°C
10 x graphical monitoring & documentation / data export
Designed for labs
flexible display mounting with lab stand support rods
clamb in durable stainless-steel
Robust and durable
- Teflon® white coated surface
- easy to clean
- Teflon® sealed reactor cells
- non-spill coolant connectors
Dataexport and automation
- data export: XLS, CSV
- live monitoring documentation: PDF, JPG
- external devices e. g. pumps,valves, sampler
Data integration
- remote control
- USB port
- LAN ethernet
- interface protocols: TCP/IP, DataREST, JSON / RS232
- export data to USB stick
- online remote Control VNC
Varying reactors, glassware and funcionality expanding add-ons
- Glass Vials 5- 30 mL GL25
- PTFE Vial 30 mL GL32
- Internal Temperature Probes PT1000
- Pressure reactors
- Photoreactor
- Electrochemical cell
- Doisng pump system
- Overhead stirrer
Fast heating and cooling
- from – 20°C to +150°C with high performance Peltier elements
- 30 °C/min heating and cooling rate
- Precise PID temperature control
Strong stirring
- Magnetical stirring 400–1500 rpm
- Mechanical stirring 20 – 1000 rpm
5-Port-Reaction Cap
Gas-tight intergration of tubes, septum and sensors for felxible reaction setups
OS: Windows 10 IoT 64 Bit
Interface: USB, LAN-Ethernet , RS232
Touchpanel monitor
1280×600 Pixel
10.1’’
10 x reactor slots, independently operating and controlled
10 x PID temperature control +/- 0.1°C
10 x magnetic stirrers 400-1500 rpm
10 x temperature profiles from -20°C to 150°C
10 x graphical monitoring & documentation / data export
Designed for labs
flexible display mounting with lab stand support rods
clamb in durable stainless-steel
Robust and durable
- Teflon® white coated surface
- easy to clean
- Teflon® sealed reactor cells
- non-spill coolant connectors
Dataexport and automation
- data export: XLS, CSV
- live monitoring documentation: PDF, JPG
- external devices e. g. pumps,valves, sampler
Data integration
- remote control
- USB port
- LAN ethernet
- interface protocols: TCP/IP, DataREST, JSON / RS232
- export data to USB stick
- online remote Control VNC
Varying reactors, glassware and funcionality expanding add-ons
- Glass Vials 5- 30 mL GL25
- PTFE Vial 30 mL GL32
- Internal Temperature Probes PT1000
- Pressure reactors
- Photoreactor
- Electrochemical cell
- Doisng pump system
- Overhead stirrer
Fast heating and cooling
- from – 20°C to +150°C with high performance Peltier elements
- 30 °C/min heating and cooling rate
- Precise PID temperature control
Strong stirring
- Magnetical stirring 400–1500 rpm
- Mechanical stirring 20 – 1000 rpm
5-Port-Reaction Cap
Gas-tight intergration of tubes, septum and sensors for felxible reaction setups
OS: Windows 10 IoT 64 Bit
Interface: USB, LAN-Ethernet , RS232
